Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	350 W
IP classification:	IP65
Protection class:	Protection class I
Power connection:	Mains input via IP T-Con (M) mounting version power supply cord with safety plug (provided)
Cable construction:	3 x 1.5 mm² H07RN-F
Power output:	1 x IP T-Con (F) mounting version Bypass
Device fuse:	T 5 A fuse serviceable
Lamp type:	LED lamp
LED type:	24 x 40 W SMD 5060 4in1 RGBL (homogenous color mix)
Effective LED Power:	Max. 105 W with single colors Max. 250 W with color blend
Max. TILT movement:	210° positioning
Flash rate:	0.6 - 20 Hz
DMX channels:	6; 7; 10; 13; 16; 28-1; 28-2; 100; 106
DMX input:	1 x 3-pin XLR (M) mounting version IP 1 x 5-pin XLR (M) mounting version IP
DMX output:	1 x 3-pin XLR (F) mounting version IP 1 x 5-pin XLR (F) mounting version IP

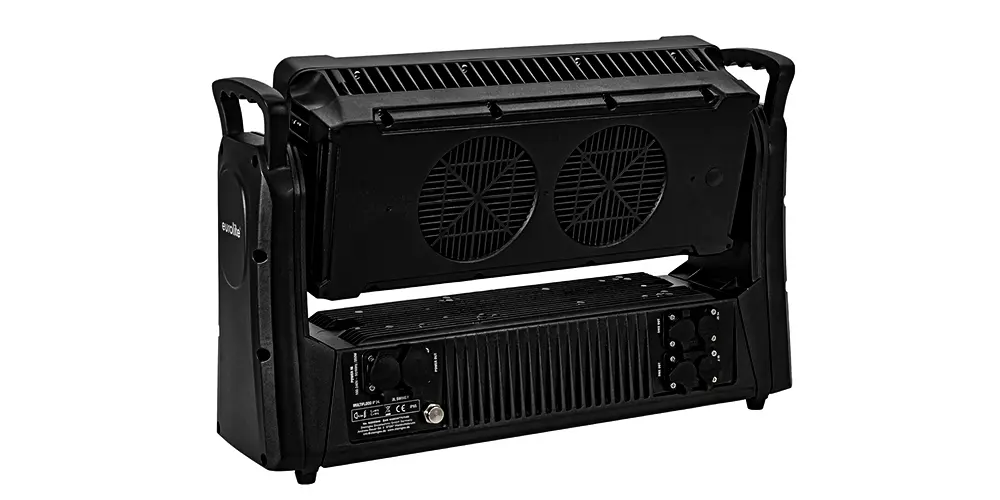

Cooling:	2 x temperature-controlled fan at the head 1 x cooling fan at the base
Control:	DMX; stand-alone; master/slave function; RDM
Fixtures available for:	Light Captain; Colorchief; GDTF (GrandMA3)
Projection:	Flicker-free
PWM frequency:	10000 Hz
DMX features:	RDM For bidirectional communication over the DMX line
DMX fail mode:	Blackout; hold; auto
Beam angle:	2° - 35° frost filter
Beam angle (1/2 peak):	Frost filter 2 - 30°
Beam angle (1/10 peak):	Frost filter 10 - 35°
Color temperature:	2800K - 8100K adjustable
Color rendering index (CRI):	81 Ra
Housing color:	Black matte
Attachment system:	2x omega bracket
Display type:	Multicolor TFT display
Carrying handle:	2 pc/pcs
Transport aid:	4 x rubber feet
Diameter mounting holes:	2 x Ø12mm
Use of brands:	Built with SEETRONIC connector
Material:	Metal, 2.5 mm, painted; plastic
Dimensions:	Length: 52.8 cm Width: 13.9 cm Height: 32.65 cm
Weight:	10.90 kg
Noise classification:	Class 0 (no noise at all) depending on mode used
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397757040	12,50 kg	63cm x 24cm x 43,5cm

Spare parts

EUROLITE Omega bracket 61

Stepping motor for LED IP Mega PIX Strobe 714 Swing

Fan 24V/0,10A 120x120x25mm LED IP Mega PIX Strobe 714 Swing (12025B-DC24V)

Pcb (Display/Control) Multiflood IP 24x40W RGBL SWING FROST

Pcb (LED driver) Multiflood IP 24x40W RGBL SWING FROST

Pcb (Driver/Frost feature) Multiflood IP 24x40W RGBL SWING FROST

Pcb (Power supply) 28V/24V Multiflood IP 24x40W RGBL SWING FROST

EUROLITE IP XLR set plug/socket 5-pin for LED IP PIX Strobe RGB CW+WW

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Dimensional drawing

Name	Version	Language
52200946-Dimensions-166153-1.0000-Dimensions-de.pdf (83 KB)	1.0000	de

Support

Name	Version	Language
52200946-Support-167580-Fixture-fuer-Colorchief-V2-de.zip (259 B)	0.0000	de

All images

Name	Version	Language
52200946-Images-.zip

Video link

https://www.youtube-nocookie.com/embed/E-aRw70y82c

EUROLITE Multiflood IP 24x40W RGBL SWING FROST

Name: EUROLITE Multiflood IP 24x40W RGBL SWING FROST
Uploaded: 2022-01-01

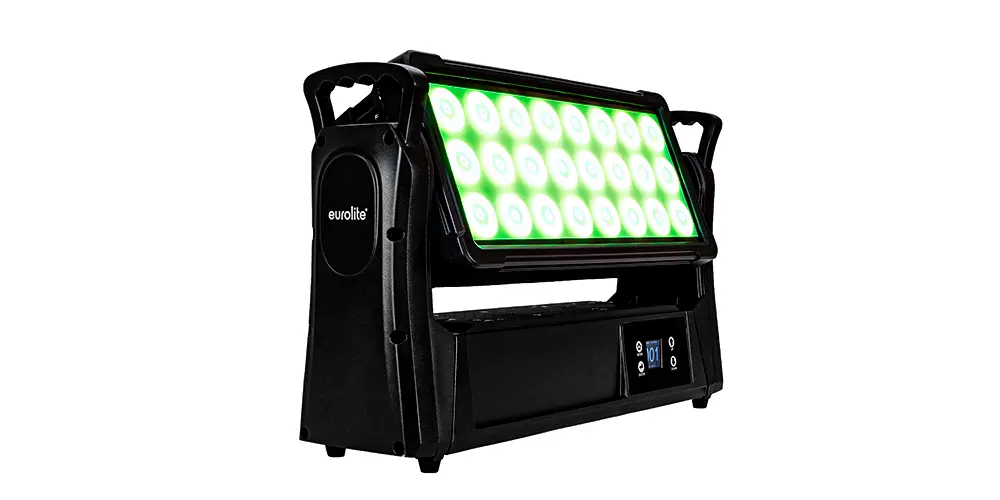

Description: Motorized tiltable outdoor spotlight (IP65) with stepless electronic frost for beam, wash, and pixel effects

Motorized tiltable outdoor spotlight (IP65) with stepless electronic frost for beam, wash, and pixel effects-MainBild

Motorized tiltable outdoor spotlight (IP65) with stepless electronic frost for beam, wash, and pixel effects-Bild-1

EUROLITE Multiflood IP 24x40W RGBL SWING FROST

available in approx. 3 wk(s)

899,00 €

available in approx. 3 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 52200946

2 - 35°

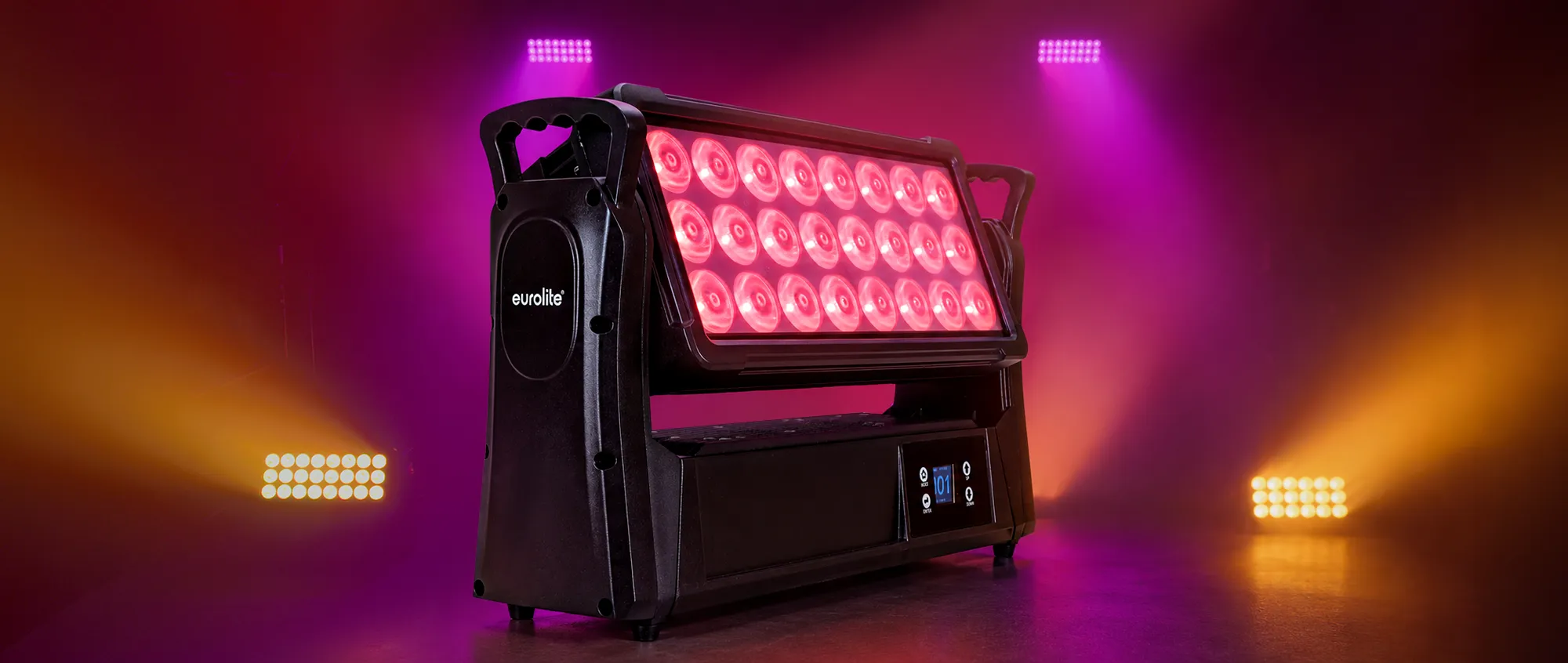

This fixture is a true all-rounder. Its weatherproof housing with an IP65 rating features a motorized tilt range of up to 210°.

The light source consists of 24 powerful 40-watt LEDs with RGBL color mixing. This allows not only for intense colors but also for particularly clean orange and yellow tones, as well as high-quality white light. Each LED can be controlled individually and, with an extremely narrow 2° beam angle, produces precise beam effects and impressive light matrices.

The name "Multiflood" comes from a special feature: in front of the LEDs is an electronically controlled frost filter that can be adjusted continuously. This allows the narrow beam to be transformed smoothly into a wide wash: turning a beam fixture into a washlight in an instant.

Whether used for beam effects in haze, as uplighting with a medium beam angle, or as a wide floodlight, this fixture covers a wide range of applications. Thanks to its motorized tilt and electronic frost, it can quickly adapt from one task to another.

Motorized tiltable outdoor spotlight (IP65) with stepless electronic frost for beam, wash, and pixel effects

With a beam angle of 2° - 35° with frost filter
Suitable for outdoor use IP65
Wash effect; beam effect; matrix effect
24 LEDs 40 W SMD 5060 4in1 RGBL (homogenous color mix)
LEDs controlled separately
Good color rendering index (CRI)
Variable color temperature 2800 K - 8100 K
Flicker-free
Positioning within 210° TILT
Exact 16 bit resolution at Dimmer, color
Control via DMX; stand-alone; master/slave function; RDM
Dimmer electronic; color blend stepless; color macros; Motion macros adjustable speed; foreground color adjustable; background color adjustable; frost filter electronic stepless
52 integrated show programs
Direct color temperature selection for 33 preset values
With omega bracket
Multicolor TFT display
Mains input and output for power linking up to 8 units
With pressure compensation membrane
The device is cooled by temperature-controlled fan at the head; cooling fan at the base
Silent operation
For application areas such as: Clubs/dancing school; wedding/gala/events; installation; stage; theater; rental; architecture
Application possibility: Standing; suspended
