Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	25 W
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Power output:	1 x IEC connector (F) mounting version
Fuse:	5 x 20 mm, T 1 A fuse replaceable
Lamp type:	LED lamp
LED type:	144 x SMD 5050 3in1 RGB (homogenous color mix)
Flash rate:	0.8 - 24 Hz
DMX channels:	3; 5; 6; 12; 24; 48
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Passive convection cooling
Control:	DMX; sound to light via microphone
Fixtures available for:	Light´J; LED PC-Control 512; Light Captain; Colorchief
Projection:	Flicker-free
PWM frequency:	13300 Hz
Housing color:	Black
Attachment system:	2x mounting bracket
Display type:	4 digit 7-segment LED display
Material:	Aluminum casting
Dimensions:	Length: 102 cm Depth: 6.5 cm Height: 8 cm
Weight:	1.54 kg
Noise classification:	Class 0 (no noise at all)
Power cord
Cable construction:	3 x 0.75 mm² H05VV-F
Cable length:	Approx. 1.2 m
Mounting bracket
Diameter mounting holes:	1 x Ø11mm; 2 x Ø8mm; 1 x Ø8.5mm
Material:	Metal, 2 mm
Knurled screw
Thread:	M8 thread x 16 mm
Washer
Material:	Rubber
Dimensions:	Height: 0.3 cm Diameter: Ø 2 cm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397618037	1,86 kg	105cm x 12cm x 11cm
8	4026397618044	16,35 kg	47,5cm x 26cm x 107cm

Spare parts

Cover (plastic/front) LED PIX-144 RGB 988x56mm

cover (Plastic) LED PIX-144 RGB black

PCB (Display/Control) LED PIX-144 RGB (LED-XQD-TY-M-V3.0)

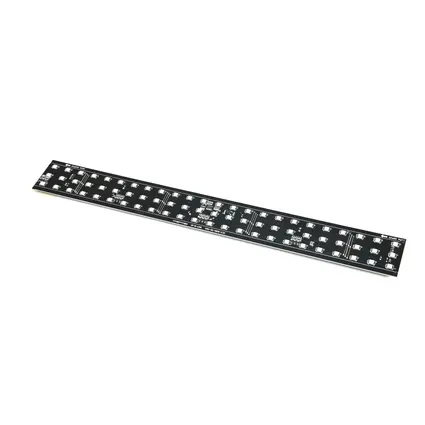

Pcb (LED) LED PIX-144 RGB (XCY-5050-72-V2.0)

locking screw M8x15 T-handle

Washer (Plastic, black)

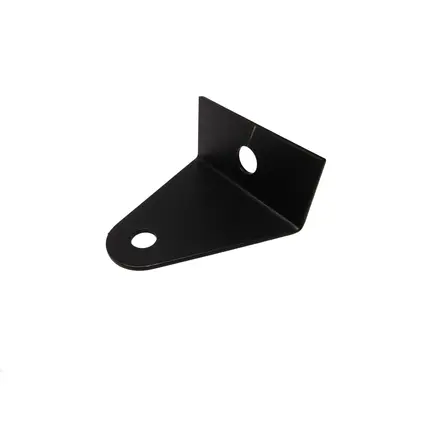

Bracket LED PIX-144 RGB Bar 60x60x30mm (1x part) black

Opto isolator PC 817 DIP-4

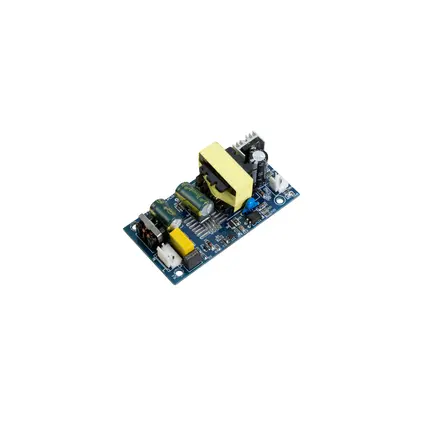

Pcb (Power supply) 12V/5A LED PIX-144 RGB (FD-36WE4.PCB)

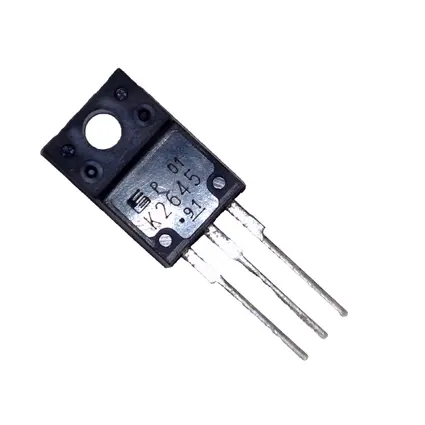

Transistor MOSFET N-Ch 600V 9A 50W TO-220F

Diode M7

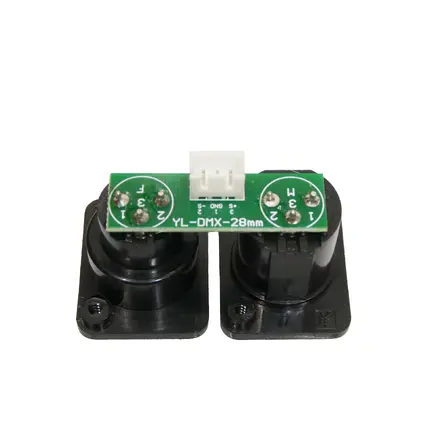

Pcb (DMX) LED TMH-X4 (YL-DMX-28mm)

voltage regulator 78M05 5V/0.5A EX-620 (TO-263-3) 3PIN

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
51930439-Support-120484-1.0000-51930439-LED-PC-Control-fixtures-de.zip (3 KB)	1.0000	de
51930439-Support-136560-Fixture-fuer-Colorchief-V2x-de.zip (231 B)	0.0000	de

All images

Name	Version	Language
51930439-Images-.zip

Publications

Move Magazine #1/2022 E

On page: 40

Size: 45 MB

Video link

https://www.youtube-nocookie.com/embed/O0GaXoeFQaQ

EUROLITE LED PIX-144 RGB Bar

Name: EUROLITE LED PIX-144 RGB Bar
Uploaded: 2022-01-01
Description: Bar (100 cm) with 144 wide beam SMD LEDs (RGB), 8 segments

Bar (100 cm) with 144 wide beam SMD LEDs (RGB), 8 segments-MainBild

Bar (100 cm) with 144 wide beam SMD LEDs (RGB), 8 segments-Bild-1

EUROLITE LED PIX-144 RGB Bar

Stock for approx. 12 wk(s)

89,90 €

Find a dealer

Stock for approx. 12 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 51930439

washer 2 cm

Bar (100 cm) with 144 wide beam SMD LEDs (RGB), 8 segments

144 LEDs SMD 5050 3in1 RGB (homogenous color mix)
8 segments controlled separately
Dimmer electronic; color blend stepless; color change adjustable; colors preset
Strobe effect
Can be operated in 3; 5; 6; 12; 24; 48 CH mode
The device is cooled by passive convection cooling
Control via DMX; sound to light via microphone
Flicker-free
With mounting bracket
4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; decoration; mobile djs / entertainer; party room; restaurants, bars and hotels; advertisement/Shop window
Silent operation
Application possibility: Suspended; wall mounting

knurled screw

M8 thread
