Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	30 W
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug included
Power output:	1 x IEC connector (F) mounting version
Fuse:	T 1 A fuse replaceable
Lamp type:	LED lamp
LED type:	16 x 0.5 W SMD 5730 cold white (CW) 4 x 3 W high-power 4in1 RGBW
Flash rate:	0 - 20 Hz
DMX channels:	1; 4
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	1 x cooling fan
Control:	Stand-alone; DMX; IR remote control; sound to light via microphone; master/slave function
Fixtures available for:	Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; Colorchief
Housing color:	Black
Attachment system:	Mounting bracket
Display type:	4 digit 7-segment LED display
Material:	Metal
Dimensions:	Width: 26 cm Depth: 18.7 cm Height: 18.7 cm
Weight:	1.75 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Power cord
Cable construction:	3 x 0.75 mm² H05VV-F
Cable length:	Approx. 1.4 m
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
Mounting bracket
Diameter mounting holes:	1 x Ø10mm
Material:	Metal, 2 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397552324	2,15 kg	31cm x 27cm x 20,5cm
4	4026397562088	9,20 kg	64cm x 56cm x 24cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Dimensional drawing

Name	Version	Language
51918202-Dimensions-162724-1.0000-51918202-dimensions-en.pdf (25 KB)	1.0000	en

Support

Name	Version	Language
51918202-Support-105929-1.0000-51918202-LED-PC-Control-fixtures-de.zip (1 KB)	1.0000	de
51918202-Support-136672-Fixture-fuer-Colorchief-V2X-de.zip (218 B)	0.0000	de

Video file

Name	Version	Language
51918202-Video-93630-de_en_es_fr.flv (23 MB)	0.0000	de_en_es_fr

All images

Name	Version	Language
51918202-Images-.zip

Video link

EUROLITE LED Mini D-20 Hybrid Beam Effect

Name: EUROLITE LED Mini D-20 Hybrid Beam Effect
Uploaded: 2022-01-01
Description: Bright LED derby and strobe hybrid in a handy size

Stock for approx. 12 wk(s)

99,00 €

Find a dealer

Stock for approx. 12 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 51918202

Bright LED derby and strobe hybrid in a handy size

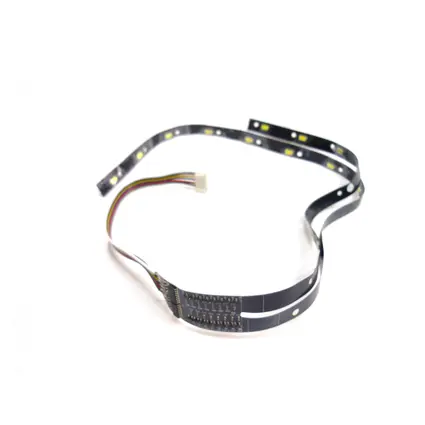

2 strips with white LEDs provide fast, dynamic strobe sffects
16 LEDs 0.5 W SMD 5730 cold white (CW)
4 LEDs 3 W high-power 4in1 RGBW
LEDs controlled separately
Rotation speed stepless
Multi beam effect; strobe effect
Integrated show programs; 18 integrated show programs
Direct color selection for 14 preset colors
The device is cooled by cooling fan
Control via stand-alone; DMX; IR remote control; sound to light via microphone; master/slave function
Fixtures available for Light´J; LED PC-Control 512; EASY SHOW 1; Light Captain; Colorchief
With mounting bracket
4 digit 7-segment LED display
Mains input and output for power linking up to 8 units
For application areas such as: Clubs/dancing school; party room; mobile djs / entertainer; decoration
Very quiet working noise
Application possibility: Suspended; on stand
