Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	12 W
Protection class:	Protection class II
Power connection:	Fixed power supply cord with Euro plug
Cable construction:	2 x 0.75 mm² H05VVH2-F
Cable length:	Approx. 1 m
Fuse:	5 x 20 mm, T 0.5 A fuse replaceable
Lamp type:	LED lamp
LED type:	1 x 10 W COB (chip-on-board) 4in1 RGBW (homogenous color mix)
Flash rate:	0.5 - 24 Hz
DMX channels:	3; 4; 5; 6; 9
Cooling:	Passive convection cooling
Control:	IR remote control; stand-alone; DMX; sound to light via microphone; master/slave function
Fixtures available for:	Light Captain; EASY SHOW 2; EASY SHOW 1; EASY SHOW 3; Colorchief
Projection:	Flicker-free
PWM frequency:	23400 Hz
Beam angle:	4° spot
Beam angle (1/2 peak):	Spot 4° Frost filter 16°
Beam angle (1/10 peak):	Spot 7° Frost filter 36°
Color temperature:	6500K
Housing color:	Black
Attachment system:	Double bracket
Display type:	4 digit 7-segment LED display
Material:	Plastic
Dimensions:	Length: 20.2 cm Width: 16.3 cm Height: 20.3 cm
Weight:	1.03 kg
Noise classification:	Class 0 (no noise at all)
Photobiological safety:	Risk Group 0
Mounting bracket
Diameter mounting holes:	1 x Ø11mm
Material:	Metal, 2 mm
Remote control
Battery:	1 x button cell 3.0 V CR2025 lithium manganese built-in
Frost filter
Material:	Plastic, 1 mm
Dimensions:	Diameter: Ø 7.7 cm

Packaging units

PU	EAN	Weight	Dimensions
1	4026397690132	1,20 kg	15,5cm x 15,5cm x 29,5cm
8	4026397691450	10,20 kg	64cm x 33cm x 32cm

Spare parts

Pcb (LED) LED PST-10 QCL Spot (L2-145 V1.1)

Pcb (Display) LED PST-10 QCL Spot (P4-038 V1.0)

Pcb (Control) LED PST-10 QCL Spot (P4-037 V1.2)

Pcb (power supply) 12V/1,8A LED TL-3 RGB+UV (XS-12V/1,8A TDP070)

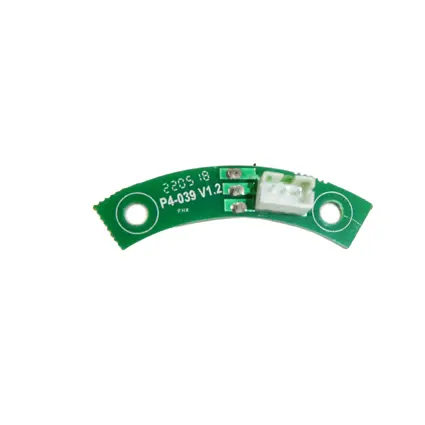

Pcb (IR) LED PST-10 QCL Spot (P4-039 V1.2)

LED 4in1 15W RGBW TMH-X25 SMD (TX-5060RGBW15FC120-NUVEN-01)

Frost filiter (incl. clamp ring) LED PST-10 QCL Spot

Fuse 5x20mm T0.5A

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
51916152-Support-136548-Fixture-fuer-Colorchief-V2x-de.zip (223 B)	0.0000	de

All images

Name	Version	Language
51916152-Images-.zip

Publications

Move Magazine #1/2021 E

On page: 4

Size: 43 MB

Move Magazine #2/2021 E

On page: 79

Size: 56 MB

Video link

https://www.youtube-nocookie.com/embed/KsTT8U1nMGg

EUROLITE LED PST-10 QCL Spot

Name: EUROLITE LED PST-10 QCL Spot
Uploaded: 2022-01-01
Description: LED pinspot with COB LED and DMX control as well as IR remote control

LED pinspot with COB LED and DMX control as well as IR remote control-MainBild

LED pinspot with COB LED and DMX control as well as IR remote control-Bild-1

EUROLITE LED PST-10 QCL Spot

Stock for approx. 12 wk(s)

89,90 €

Find a dealer

Stock for approx. 12 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 51916152

16° frost filter

4° spot

frost filter 7.7 cm

LED pinspot with COB LED and DMX control as well as IR remote control

Additional frost filter provides a wide, soft and homogeneous light
1 LED 10 W COB (chip-on-board) 4in1 RGBW (homogenous color mix)
Color blend stepless; color change adjustable; color fade adjustable; Dimmer electronic
Strobe effect
9 integrated show programs
Direct color selection for 19 preset colors
Can be operated in 3; 4; 5; 6; 9 CH mode
The device is cooled by passive convection cooling
Control via IR remote control; stand-alone; DMX; sound to light via microphone; master/slave function
Flicker-free
With a beam angle of 4° spot
With double bracket
4 digit 7-segment LED display
For application areas such as: Clubs/dancing school; decoration; mobile djs / entertainer; restaurants, bars and hotels
Silent operation
Application possibility: Standing; suspended; on stand
