Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	70 W
Protection class:	Protection class I
Power connection:	Mains input via IEC connector (M) mounting version power supply cord with safety plug (provided)
Fuse:	5 x 20 mm, T 1.5 A fuse replaceable
Lamp type:	LED lamp
LED type:	1 x 60 W COB (chip-on-board) cold white (CW)
Equipment:	Color wheel; gobo wheel with rotating gobos; focus manual
Color generation:	Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed
Gobos:	Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 10mm Image diameter 14mm Slot-in gobo system for easy gobo replacement Shake effect
DMX channels:	10
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Cooling fan
Control:	Stand-alone; DMX; QuickDMX via USB (optional); master/slave function; sound to light via microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Fixtures available for:	Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Projection:	Flicker-free
Beam angle:	11°
Beam angle (1/2 peak):	11°
Illuminance in Lux (lx):	Cold white (CW) 1m: 12034 lx, 3m: 1489 lx, 6m: 388 lx
Housing color:	White
Display type:	LCD display
Transport aid:	Rubber feet
Dimensions:	Width: 16.0 cm Depth: 15.0 cm Height: 33.0 cm
Weight:	3.26 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397709438	3,66 kg	40cm x 23cm x 21,8cm
4	4026397716030	15,50 kg	47cm x 41cm x 45,5cm

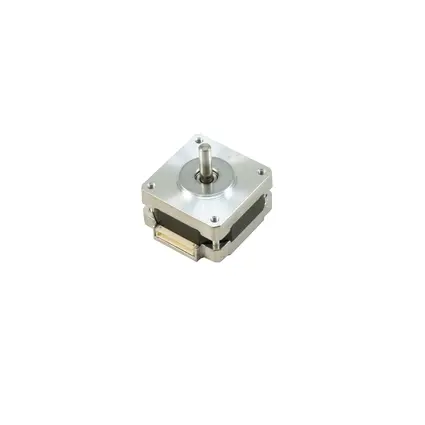

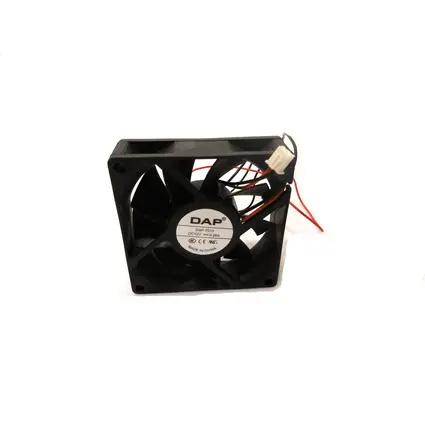

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

All images

Name	Version	Language
51786151-Images-.zip

Video link

EUROLITE LED TSL-350 Scan COB wh

Name: EUROLITE LED TSL-350 Scan COB wh
Uploaded: 2022-01-01
Description: Handy scanner with 60 W COB LED, gobo and color wheel

Stock for approx. 12 wk(s)

299,00 €

Find a dealer

Stock for approx. 12 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 51786151

11°

Handy scanner with 60 W COB LED, gobo and color wheel

Compact design
1 LED 60 W COB (chip-on-board) cold white (CW)
Positioning within
Color wheel; gobo wheel with rotating gobos; focus manual
Dimmer electronic
Color wheel with 7 dichroic filters plus open
half colors selectable, Rainbow effect with adjustable speed
Gobo wheel with rotating gobos, 7 gobos and open
slot-in gobo system for easy gobo replacement
Shake effect
Integrated show programs
Can be operated in 10 CH mode
The device is cooled by cooling fan
Control via stand-alone; DMX; QuickDMX via USB (optional); master/slave function; sound to light via microphone; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Flicker-free
With a beam angle of 11°
LCD display
Rubber feet
For application areas such as: Clubs/dancing school; restaurants, bars and hotels; party room; mobile djs / entertainer
Application possibility: Standing; suspended; on stand
