Technical specifications
Power supply:100-240 V AC, 50/60 Hz
Power consumption:110 W
Protection class:Protection class I
Power connection:Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:P-Con (grey), mounting version
Fuse:5 x 20 mm, T 4 A fuse replaceable
Lamp type:LED lamp
LED type:1 x 100 W COB (chip-on-board) cold white (CW)
Max. TILT movement:50° exact positioning (16 bit resolution)
Max. PAN movement:160° exact positioning (16 bit resolution)
Flash rate:1 - 25 Hz
Equipment:Focus motor-driven; color wheel; gobo wheel with rotating gobos; prism 3-fold
Color generation:Color wheel with 8 dichroic filters plus open
Half colors selectable, Rainbow effect with adjustable speed in both directions
Gobos:Gobo wheel with rotating gobos, 7 gobos and open
Outside diameter 23.9mm
Image diameter 18mm
Shake effect
Gobos changeable
Slot-in gobo system for easy gobo replacement
DMX channels:10; 15
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:Stand-alone; DMX; master/slave function; sound to light via microphone
Fixtures available for:Light´J; Light Captain; EASY SHOW 2; EASY SHOW 3
Projection:Flicker-free
Beam angle:20°
Beam angle (1/2 peak):20°
Color temperature:8000K
Illuminance in Lux (lx):Cold white (CW) 1m: 35679 lx, 3m: 4265 lx, 6m: 1055 lx
Housing color:Black
Display type:OLED display
Transport aid:Rubber feet
Material:Metal; plastic
Dimensions:Width: 25.1 cm
Depth: 14.1 cm
Height: 37.7 cm
Weight:5.75 kg
Noise classification:Class 2 (slight noise)
Power cord
Cable construction:3 x 1.0 mm² H05VV-F
Mounting bracket
Diameter mounting holes:3 x Ø10mm
Material:Metal, 3 mm
Safety eyelet
Material:Metal
Ring diameter:Outside: 23 mm
Inside: 11 mm
Thread:M6 thread
Packaging units
PUEANWeightDimensions
140263976991046,60 kg50cm x 31cm x 25cm
Spare parts
E3038109
Mirror (oval) 110x70mm
E6519737
LED COB 100W 8000K TSL-1000 (TX-2728W70FC120-NUVENG-A01)
E6519738
Pcb (Power supply) 13V/1A 26V/2A + 6A LED TSL-1000 Scan (H27-U150T + 1326-6A)

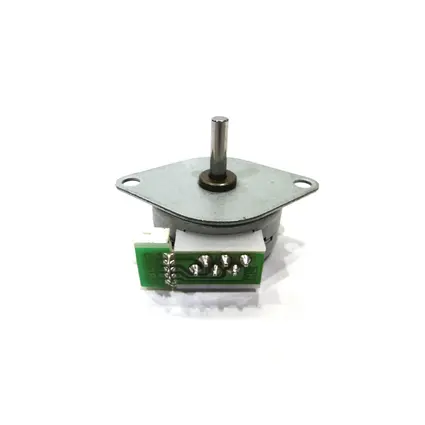

E6519744
Stepping motor small Axis=3mm LED TSL-1000 Scan (Gobo)

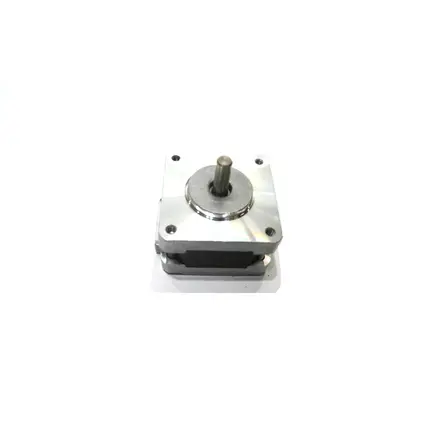

E6519751
Stepping motor 39HS2404-15 LED TSL-1000 Scan ()

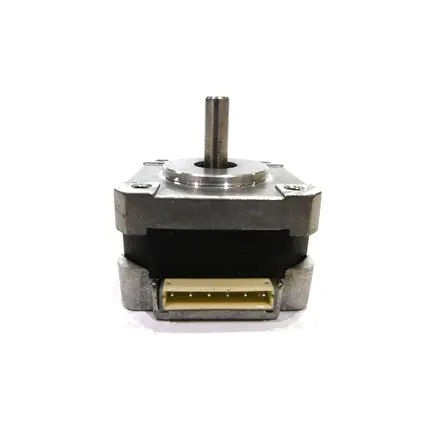

E6519752
Stepping motor 35BYGH508-A-15 LED TSL-1000 Scan ()

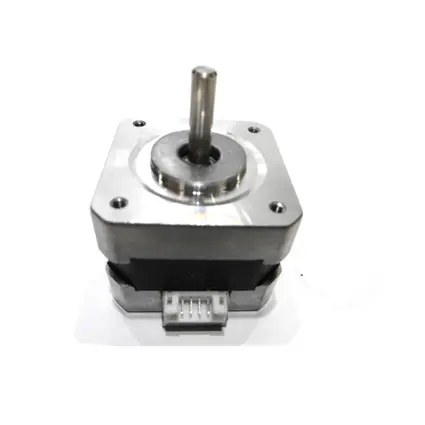

E6519753
Stepping motor 42HS1402-20 LED TSL-1000 Scan ()

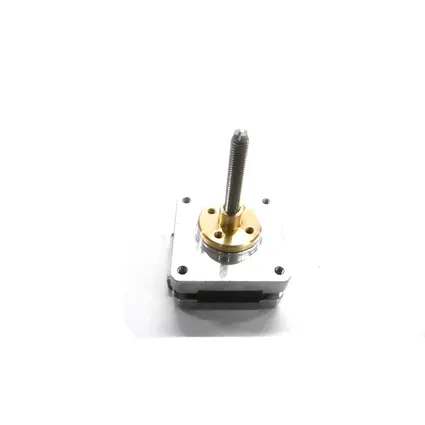

E6519754
Stepping motor 39HS1403-41N LED TSL-1000 Scan ()
Eye bolt M6 TSL-1000 MK2

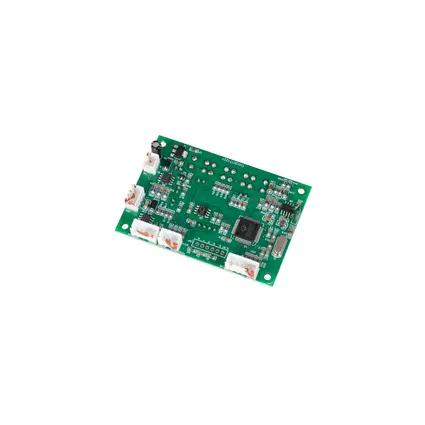

E6520061
Pcb (Control) TSL-1000 MK2 (THY20171227) V1.07
E3000557
fuse holder 527 LED H²O
E6506288
Panel plug XLR (Socket) straight pins
housing part (Front cover) LED TSL-1000 Scan MK2
Linse TSL-1000 MK2
Downloads
Spezifications
NameVersionLanguage
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral
Dimensional drawing
NameVersionLanguage
51786126-Dimensions-162637-1.0000-51786126dimensionspdf-de.pdf (43 KB)1.0000de
All images
NameVersionLanguage
51786126-Images-.zip
Video link
https://www.youtube-nocookie.com/embed/naSOgfJ3nEA
...
Lighting
 / Moving lights
 / Scanner

EUROLITE LED TSL-1000 Scan MK2

Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-MainBild
Double tap or pinch to zoomHover to zoom
Bildergalerie öffnen
Detail images (48 overall)
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-1
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-3
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-4
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-5
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-6
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-7
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-8
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-9
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-10
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-11
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-12
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-13
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-14
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-15
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-16
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-17
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-18
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-19
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-20
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-21
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-22
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-23
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-24
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-25
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-26
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-27
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-28
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-29
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-30
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-31
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-32
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-33
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-34
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-35
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-36
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-37
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-38
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-39
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-40
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-41
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-42
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-43
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-44
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-45
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-46
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-47
Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus-Bild-48
EUROLITE

EUROLITE LED TSL-1000 Scan MK2

Stock for approx. 12 wk(s)
429,00 €
add to cart
Find a dealer
Stock for approx. 12 wk(s)
List price excl. 19% VAT
Prices in retail stores may vary.
No. 51786126
svg
20°
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg
svg

Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus

  • Note: The macro programs of the predecessor model (no. 51786122) are not identical, therefore no synchronous master/slave operation is possible between these devices.
  • 1 LED 100 W COB (chip-on-board) cold white (CW)
  • Positioning within 160° PAN, 50° TILT
  • Exact positioning (16 bit resolution)
  • Focus motor-driven; color wheel; gobo wheel with rotating gobos; prism 3-fold
  • Dimmer electronic
  • Gobo effect; strobe effect
  • Color wheel with 8 dichroic filters plus open
    half colors selectable, Rainbow effect with adjustable speed in both directions
  • Gobo wheel with rotating gobos, 7 gobos and open
    shake effect
  • Gobos changeable
  • Slot-in gobo system for easy gobo replacement
  • Integrated show programs
  • Can be operated in 10; 15 CH mode
  • The device is cooled by cooling fan
  • Control via stand-alone; DMX; master/slave function; sound to light via microphone
  • Flicker-free
  • With a beam angle of 20°
  • OLED display
  • Rubber feet
  • Mains input and output for power linking up to 8 units
  • For application areas such as: Clubs/dancing school; wedding/gala/events; mobile djs / entertainer; stage; restaurants, bars and hotels
  • Application possibility: Standing; suspended; on stand

safety eyelet

  • M6 thread
