Technical specifications

Power supply:	100-240 V AC, 50/60 Hz
Power consumption:	85 W
Protection class:	Protection class I
Power connection:	Mains input via P-Con (blue), mounting version power supply cord with safety plug included
Power output:	P-Con (gray), mounting version
Fuse:	T 1 A fuse replaceable
Lamp type:	LED lamp
LED type:	1 x 100 W COB (chip-on-board) warm white (WW)
Flash rate:	0.5 - 23 Hz
DMX channels:	1; 4
DMX input:	3-pin XLR (M) mounting version
DMX output:	3-pin XLR (F) mounting version
Cooling:	Low-noise cooling fan
Control:	Stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
Fixtures available for:	Light´J; Light Captain; Colorchief
Projection:	Flicker-free
PWM frequency:	21800 Hz
Beam angle (1/2 peak):	40°
Beam angle:	40°°
Beam angle (1/10 peak):	70°
Color temperature:	3100K
Color rendering index (CRI):	96 Ra
Illuminance in Lux (lx):	Warm white (WW) 1m: 5692 lx, 3m: 680 lx, 6m: 180 lx
Housing color:	Black matte
Attachment system:	Double bracket
Display type:	4 digit 7-segment LED display
Material:	Plastic; metal
Dimensions:	Width: 24.3 cm Depth: 31.1 cm Height: 32 cm
Weight:	2.75 kg
Noise classification:	Class 1 (very slight noise, suitable for noise-sensitive environments)
Photobiological safety:	Risk Group 0
Power cord
Cable construction:	3 x 1.0 mm² H05VV-F
Mounting bracket
Diameter mounting holes:	1 x Ø11mm
Material:	Metal, 2.5 mm
Barndoor
Material:	Metal, 0.8 mm
Legal specifications
Special product:	Not designed for household room illumination
Intended use:	Show effect lighting

Packaging units

PU	EAN	Weight	Dimensions
1	4026397676266	3,10 kg	25,5cm x 22,5cm x 33,5cm
4	4026397681406	13,40 kg	53cm x 47cm x 37cm

Spare parts

Fan 12V/0,15A 60x60x25 (DC 12S6025M)

Pcb (Control) LED Theatre COB 100 WW (H3-233V1.0)

Pcb (Control) LED Theatre COB 100 WW (G1-018Ver1.0)

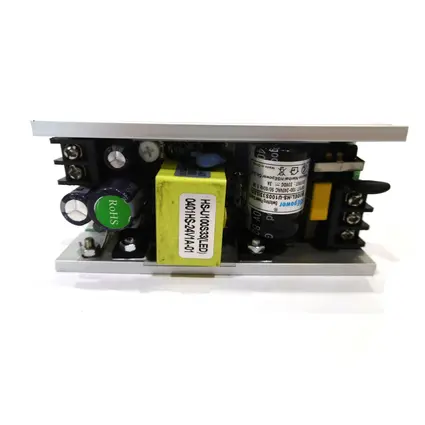

Pcb (Power supply) 24V/1A LED Theatre COB 100 WW (HS-U100S33LED)

LED COB 100W WW LED Theatre COB 100 WW

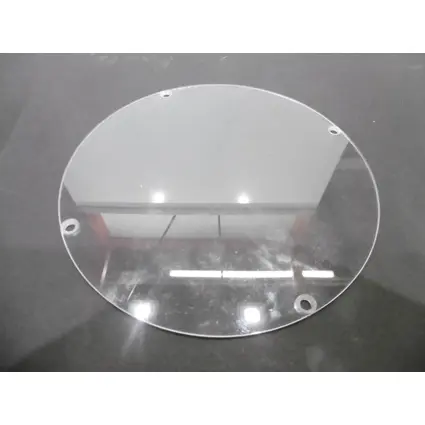

Front plate LED Theatre COB 100 WW

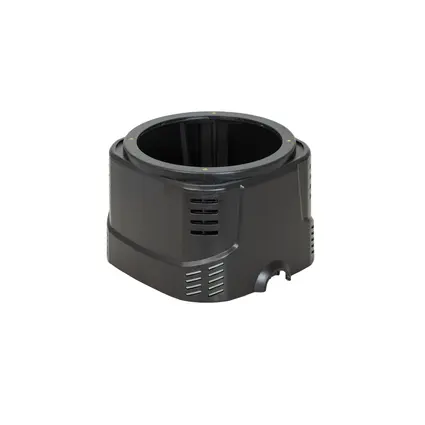

Housing part (rear) LED Theater COB 100 RGB+WW bl

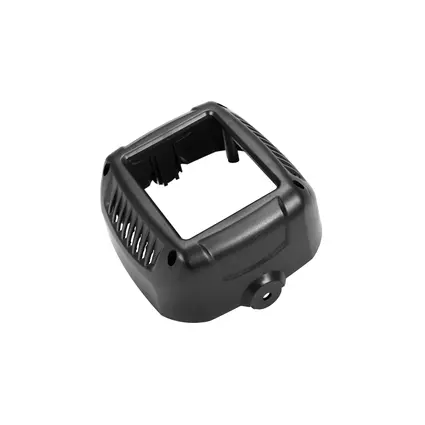

Housing part (front) LED Theater COB 100

Pcb (USB) LED 7C-7 Silent Slim Spot (G1-028)

Pcb (DMX) PS-4 HCL 3-Pol (G1-002Ver1.0)

EUROLITE Barndoor LED Theatre COB 100

EUROLITE P-Con Power Cable 3x1 1.2m

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Support

Name	Version	Language
41602010-Support-136579-Fixture-fuer-Colorchief-V2x-de.zip (221 B)	0.0000	de

All images

Name	Version	Language
41602010-Images-.zip

Publications

Move Magazine #1/2021 E

On page: 56

Size: 43 MB

Move Magazine #2/2020 E

On page: 34

Size: 16 MB

Video link

https://www.youtube-nocookie.com/embed/sfaLPkvHpNk

EUROLITE LED Theatre COB 100 WW

Name: EUROLITE LED Theatre COB 100 WW
Uploaded: 2022-01-01
Description: LED theatre spot with warm white (WW) 100 W COB (chip-on-board) LED

LED theatre spot with warm white (WW) 100 W COB (chip-on-board) LED-MainBild

LED theatre spot with warm white (WW) 100 W COB (chip-on-board) LED-Bild-1

EUROLITE LED Theatre COB 100 WW

Stock for approx. 6 wk(s)

199,00 €

167,23 €

-16% valid until 31.07.2026

Find a dealer

Stock for approx. 6 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 41602010

40°

LED theatre spot with warm white (WW) 100 W COB (chip-on-board) LED

With a beam angle of 40°
Very high color rendering index (CRI)
The device is cooled by low-noise cooling fan
Flicker-free
Integrated show programs
With double bracket
Mains input and output for power linking up to 8 units
Control via stand-alone; DMX; sound to light via microphone; master/slave function; QuickDMX via USB (optional); W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional)
For application areas such as: Stage; wedding/gala/events; Trade fair and shop fitting; restaurants, bars and hotels; theater; video and photography; advertisement/Shop window
Application possibility: Standing; suspended; on stand
Can be operated in 1; 4 CH mode
