Technical specifications

Power:	Program: 800W Rated: 400W RMS
Frequency range:	40 - 18000 Hz
Sensitivity:	96 dB (1W/1m)
Impedance:	8 ohms
Attachment system:	Flange: Ø 35mm
Connections:	Input: speaker via 2 x speaker built-in socket (F)
Speaker:	1 x woofer 12" Basket material: steel Conematerial: cardboard/paper 1 x midrange speaker 8" 1 x tweeter
Type of speaker:	Compact cabinet speaker
Carrying handle:	2 pc/pcs
Material:	, 15 mm
Color:	Black
Dimensions:	Width: 40 cm Depth: 31 cm Height: 65.5 cm
Weight:	13.70 kg

Packaging units

PU	EAN	Weight	Dimensions
1	4026397101164	15,30 kg	42cm x 32,5cm x 68cm

Spare parts

Downloads

Spezifications

Name	Version	Language
Spezifications as PDF
Product badge
Specifications as PDF neutral
Product badge neutral

Illustration

Name	Version	Language

Data sheet

Name	Version	Language
11038571-Datasheet-6264-1.0000-de_en.pdf (413 KB)	1.0000	de_en
11038571-Datasheet-6361-1.0000-de_en_es_fr.pdf (413 KB)	1.0000	de_en_es_fr

All images

Name	Version	Language
11038571-Images-.zip

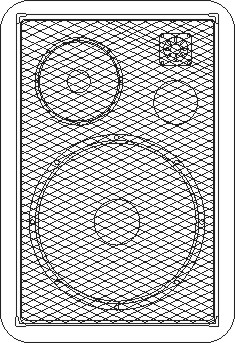

OMNITRONIC TMX-1230 3-way Speaker 800W

Name: OMNITRONIC TMX-1230 3-way Speaker 800W
Brand: OMNITRONIC
SKU: 11038571
Price: 129.00 EUR
Availability: InStock

Stock for approx. 12 wk(s)

129,00 €

Find a dealer

Stock for approx. 12 wk(s)

List price excl. 19% VAT
Prices in retail stores may vary.

No. 11038571

Full-Range speaker-system for disco or live music with 12" woofer and 800 W power

Rugged full-range speaker-system in a stable wooden housing
30 cm woofer (12") with special, higly temperature resistant vibrating coil
Tweeter with coil-driver for powerful treble
Mid-range membrane loudspeaker for a smooth sound when reproducing speech or singing
With passive 3-way crossover
Powerful bass via voluminous housing and bass-reflex tube
Very high durability
Scratch-resistant, black felt-covering
With stable protective steel corners
Black metal grille
2 Rugged carrying handles
Application possibility: Standing; on stand
For application areas such as: Stage; band/rehearsal room; product presentations and lectures
For further information about this product, please refer to the Data Sheet under "Downloads"
