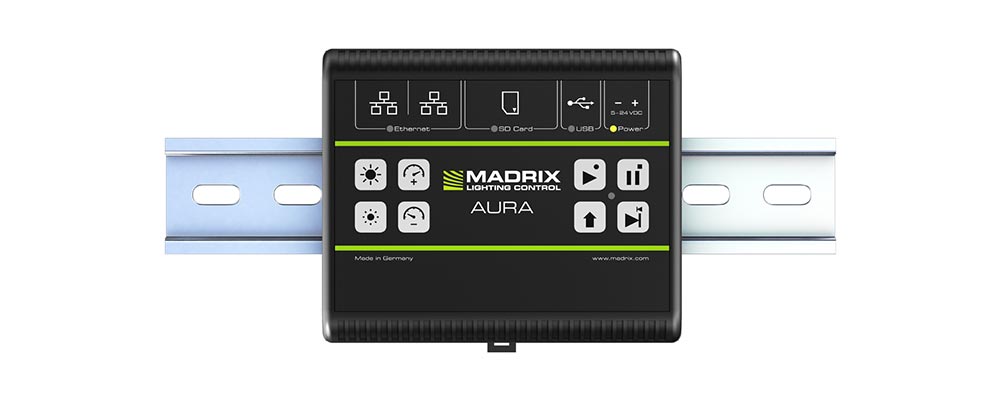

The MADRIX AURA is a compact stand-alone controller for easy recording and playback of large-scale pixel mapping applications. With its outstanding performance, it sets new standards for compact controllers.
Stand-alone playback
With MADRIX AURA, you can play back even the most demanding light shows in stand-alone mode via Art-Net or streaming ACN. The unit easily controls up to 2, 8 or 32 universes.
Recording function
The MADRIX AURA allows you to record any Art-Net or Streaming ACN network stream to the inserted memory card for later playback
Web configuration
To access and change specific fixture settings (e.g. IP address, universes, playlist settings), simply use the built-in web configuration page.
MADRIX AURA is controlled via user-defined HTTP commands and the integrated web server or via Art-Net/sACN.
Scheduled shows
Thanks to the internal clock, saved shows and sequences can play automatically at predetermined times. Also on board is a sunrise and sunset timer.
Master-slave synchronization & scalability
Multiple units can be linked together for large projects. The entire group is automatically synchronized across all DMX universes to ensure error-free playback.
